MRFG1S Series Relay Module
Features
It is used for PLC output load current amplification and isolation protection. It is installed in the digital output terminal of PLC, MCU industrial control board, time relay, button and other controllers. It amplifies the output current of the output terminal for high-power equipment and weak current control. In such occasions, to protect the control system core is not destroyed.
Request A Quote Share Our Social
Ordering Information：
MRFG 1 08 024 D S
Relay Module：MRFG
Relay contact form：1
1: 1C/O (change over)
2: 2C/O (change over)
Relay digits：08
2 ~ 32 (even)
Coil voltage：024
005: 5VDC
012: 12VDC
024: 24VDC
730: 230VAC
Optional function: Output with absorption protection：D
(only for the contact structure is 1C)
Empty: no protective parts (standard)
D: DC load add freewheeling diode
R: AC/DC load add resistance device
M: AC/DC load add varistor device
Input connection type:S
Empty: screw terminal
S: Connector( set≥8 digitals)
Note: When the DC is input, the common terminal can be male and female, that is, the input is not positive or negative.
Characteristics：
Built-in R2G1CO series relay, load capacity 12A 250VAC (RES.), 12A 30VDC (RES.). It conforms to QC, CE, TUV, UL
Input mode: terminal block input, NPN and PNP are general purpose, AC and DC are general purpose
Output form: 1 NO, 1 NC (single pole double throw)
The input has separate LED action indicators for each group
The output terminal can be optionally equipped with a protection absorbing device of increase with RC or freewheeling diode.
The output terminal can be optionally equipped with increase in overvoltage protection absorption device
35mm type U, type E Industrial dinrail quick Module
Conforms to ROHS
Technical Parameters (MRFG1□□S Series)
| Input (Coil) | |
| Norminal input voltage | DC 5V/DC12V/DC 24V AC 230V |
| Norminal current | 110mA/48mA/26mA 4.8mA |
| Minimum start voltage | DC:≤75%;AC:≤80% |
| Drop-out voltage | DC:≥10%;AC:≥30% |
| Start time | ≤20ms |
| Drop-out time | ≤10ms |
| Output (Contact) | |
| Contact structure | 1NC-1NO /SPDT (Single pole double throw) |
| Resistive Load | 12A/250VAC,30VDC |
| Motor Load | 1/3HP,240VAC |
| Minimum applicable load | 5VDC/100mA |
| Electrical durability | ≥20 x 10⁴times (1800 Ops/h) |
| Mechanical durabilty | AC≥3000 x 104 times (1800 Ops/h) DC≥5000 x 104 times (1800 Ops/h) |
| Material | Ag alloy |
| General Data | |
| Power per group | DC about0.6W;AC about1W |
| Action display | LED display |
| Ambient tempreture | -40～+55℃(No icing) |
| Ambient humidity | 5～85%RH (No condensation) |
| Terminal wiring specification | 0.2～2.5mm²(26～12WG) |
| Stripping length | 6～8mm |
| ConnectorNorminal current,voltag1e | 1A≤60VAC/DC |
Dimensions:
Width W=88, Height H=63, Length L see the table below (mm)
| Digit | 02 | 04 | 06 | 08 | 10 | 12 | 14 | 16 |
| L | 40 | 71 | 102 | 133 | 163 | 201 | 232 | 256 |
| Digit | 18 | 20 | 22 | 24 | 32 | |||
| L | 293 | 323 | 355 | 386 | 508 |
Note: Any other digits can be customized.
Wiring Diagrams:

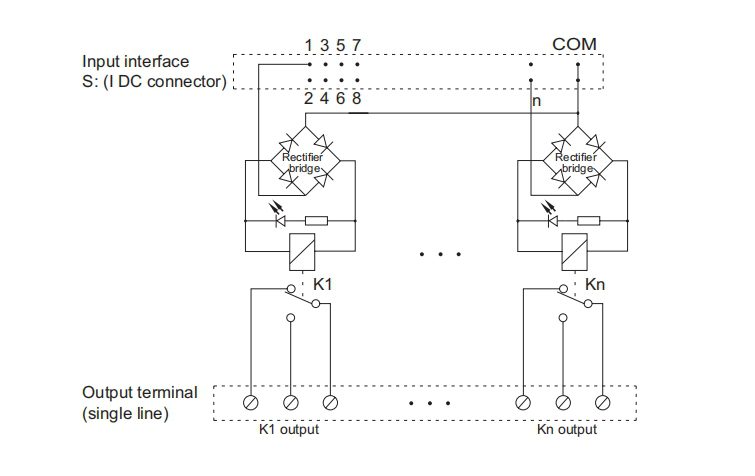

Note:The above schematic diagram shows the circuit diagram of the product of control voltage AC / DC 5~24V, there is no Rectifier bridge inside the product of control voltage AC230V. 1, 2…n is the digital input control terminal, and COM is the common terminal.
