Everything You Need To Know About The 3 Phase Solid State Relay

In industrial automation, solid state relays (SSR) are integral to controlling high-voltage apparatuses and machinery without the use of moving parts. Specifically, solid state contactor 3 phase serve an important purpose in controlling industrial loads and machinery.

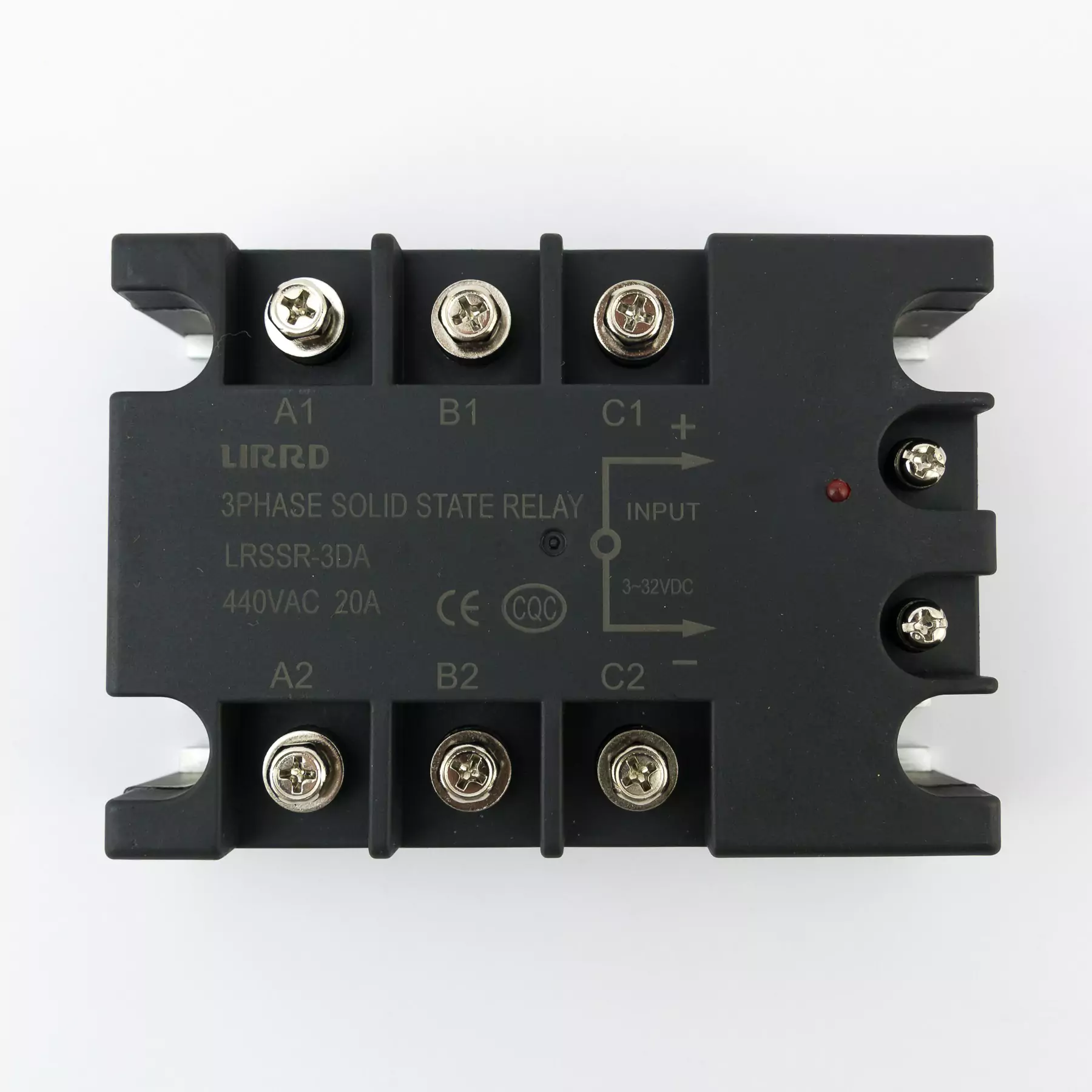

What is a 3 Phase Solid State Relay?

A 3 phase solid state relay (SSR) is an electrical component that operates as a switch for the three-phase electrical system, particularly for circuits which don’t employ electromechanical parts. It is widely used in applications that can utilise fast switching of large loads such as large pumps motors, heating systems, and industrial machines. SSRs have obvious advantages over traditional relays due to the fact that they utilise semiconductor devices, specifically thyristors, to turn the load on and off, meaning the power can be switched electronically instead of mechanically. This provides many benefits including high speed turning on and off, increased lifespan, and lower energy consumption.

Traditional solid state contactor 3 phase employs three separate SSRs mounted together within one case, making the control of the three phases operate simultaneously. This common type of 3 phase SSR design greatly simplifies wiring, reduces the required area on panel board, and increases the operating dependability of the system.

7 Key Functions of a 3 Phase Solid State Relay

Here are 7 key 3 phase solid state relay function:

Key Function	Description
Low Power Consumption	Consumes 0.1-1W, more economical than mechanical relays (1-2W).
Long Lifespan	Can last from 100,000 to 5 million operations (5-10 years), longer than mechanical relays.
Fast Switching Speed	Switches on and off up to 120 times a minute, useful for precise control.
Noiseless Operation	Operates silently, ideal for quiet environments.
Wide Load Voltage Range	Supports voltages from 24VAC to 480VAC, offering flexibility for various applications.
Strong Vibration Resistance	Superior vibration resistance due to the lack of moving parts.
Enhanced Safety	Features optical isolation and HiPot rating up to 4000V for better safety.

Low Power Consumption

3 phase SSRs have a control section power consumption of 0.1-1W, which is vastly superior to the consumption of mechanical relays (1-2W), making SSRs more economical.

Long Lifespan

Without any moving components, 3 phase SSRs can withstand from 100,000 to 5 million operations (5-10 years), which is far better than how long mechanical relays last.

Fast Switching Speed

SSRs have the ability to switch on and off 120 times a minute, making them useful where great control is required, such as in temperature control.

Noiseless Operation

3 phase SSRs are suited for quiet environments as they operate without noise, unlike electromechanical relays.

Wide Load Voltage Range

Support from 24VAC to 480VAC gives them the upper hand and flexibility as far as different applications are concerned.

Strong Vibration Resistance

solid state contactor 3 phase have superior vibration resiliency because of the absence of moving parts, guaranteeing reliability under extreme conditions.

Enhanced Safety

3 phase SSRs are reasonably safe because they are optically isolated by optocouplers, which also provide HiPot rating of up to 4000V.

How Does a 3 Phase Solid State Relay Work?

A 3 phase SSR switches on using a control signal to an input that powers a semiconductor device, which opens or closes the circuit to regulate the power output to the load. The control signal is relayed through solid state components such as thyristors or triacs, which are wired in parallel to control the power flow for each of the 3 phases in a 3-phase system.

Zero crossing SSRs and random turn on SSRs are types of SSRs utilised for different loads. Inductive loads, for instance, employ random turn on SSRs, while resistive heating loads rely on zero crossing SSRs to control the inrush currents along with protecting the devices from electrical surges.

5 Applications of a 3-Phase Solid State Relay

• Motor Control: 3-phase SSRs are perfect for controlling high power three phase motors in industrial machines and HVAC systems.
• Heating Systems: In industrial heating applications, SSRs are utilised to control the electric power of furnaces and ovens and associated three phase heating elements.
• Plastic Machinery and Packaging Equipment: SSRs also serve the purpose of temperature and power control in moulding and packaging machines.
• Welding and Air Handling Units: 3-phase SSRs govern the electric power supplied to welding machines and air handling units.
• Industrial Automation: These relays are also used in automation of production processes of conveyor systems, extruders, and other automated production lines.

3 Phase Solid State Relay Circuit Design

The design of the 3-phase SSR circuit requires the parallel connection of three thyristors or triacs, where each component controls one phase of the system. The control input activates the triacs by sending a signal, which turns the load on or off.

With zero crossing SSRs, the load is switched on and off by the relay at zero crossing of the AC voltage to minimise electrical noise and protect the equipment. For inductive loads, on the other hand, a random turn-on SSR is used for turning on all three phases at once.

Comparative Analysis: 3-Phase vs. 2-Phase vs. Single-Phase SSR

Single-Phase Solid State Relay

A single phase SSR also has a lower power rating but is used to control a single-phase circuit, for example with lights or single-phase motors. These SSRs are less expensive and are built for simpler applications. However, single-phase SSRs lack the capacity to manage 3-phase systems. In contrast to them, 3-phase SSRs are more efficient for heavy duty operations.

2 Phase Solid State Relay

A two-phase SSR is not widely available like the single-phase or three-phase relays, but is an option for specialised systems with two-phase power requirements. Such systems are rare and usually have older machines or other specialised power systems. They, however, are indistinguishable from single-phase SSRs in their operational purposes and are largely meant for smaller applications.

Critical 3 Differences

Aspect	Single Phase SSR	2 Phase SSR	3 Phase SSR
Power Handling	Lower power rating, suitable for small loads like lights and single-phase motors.	Handles moderate power, used for specialized two-phase systems.	Handles significantly more power, ideal for industrial applications.
Efficiency	Less efficient for heavy-duty applications.	Similar to single-phase, but rare and often used in older systems.	Highly efficient in power transmission and load distribution.
Cost	Less expensive, ideal for simpler applications.	Often cost-effective for specific two-phase applications.	More expensive, but offers better versatility and efficiency.

• Power Handling: A 3-phase SSR can handle significantly more power than single-phase or 2-phase SSRs, making it ideal for industrial applications.
• Efficiency: Three-phase systems are more efficient in transmitting power over long distances and can distribute load more evenly, reducing stress on the system.
• Cost: While solid state contactor 3 phase tend to be more expensive, they offer more versatility and efficiency in industrial settings compared to single-phase SSRs.

Choosing the Right solid state contactor 3-phase for Your System

When choosing a solid state contactor 3 phase relay for your system, consider the following factors:

• Load Type: Different SSRs are suitable for various types of loads, such as inductive or resistive loads. Ensure that the SSR you select is compatible with your load type.
• Voltage and Current Rating: Make sure the SSR can handle the voltage and current requirements of your system.
• Switching Frequency: Depending on your application, you may need an SSR that can handle fast switching cycles.
• Thermal Management: Consider the heat dissipation requirements of the SSR. For high-power applications, additional heat sinks may be needed.

Conclusion

In summary, the 3-phase solid state relays (SSRs) are crucial in present industrial systems since they provide rapid switching and possess good reliability along with a long lifetime. When comparing the 1-phase and 2-phase SSRs with their 3-phase counterparts, the latter are highly load-bearing and, therefore, more numerous. This makes them extremely useful in one’s assistance for motor control, heating, and industrial automated processes.
