8 Functions of Relay Module in Fire Alarm Systems

What is a Fire Alarm Relay Module?

As a vital element of state-of-the-art fire alarm systems, a fire alarm relay module is an essential component. It acts as a medium of communication between devices operating at low voltages and the fire control panels operating at high voltages. Sprinklers, fire doors, and alarm systems are only a few of the many devices the relay module can control. The unit receives instructions from the fire control system and subsequently uses its dry contacts to trigger the devices. It enables maximum automation and speed in the response of emergency systems once fire is detected.

Why Relay Module in Fire Alarm System is Important?

Unlike other systems, the relay of the fire alarm can perform multiple functions simultaneously without compromising the safety measures taken. Such an approach improves overall fire safety and enhances response integration.

Below are the eight key functions of relay modules in fire alarm systems.

8 Functions of Relay Module in Fire Alarm Systems



Function	Description
Device Activation and Deactivation	Controls activation of strobe lights, sirens, sprinklers, fire doors, and HVAC systems upon fire detection.
Integration with Other Building Systems	Connects fire alarm systems with HVAC and security systems for improved safety.
Fault Isolation and System Maintenance	Disconnects faulty units (e.g., smoke detector relay module) to maintain the functionality of the rest of the system.
Sequential Control for Systematic Response	Ensures a specific order of device activation (e.g., smoke exhaust fans first, followed by alarms and sprinklers).
Emergency Power Management	Manages seamless transition between primary and backup power sources during a power failure.
Remote Monitoring and Control	Enables operators to monitor and control the system remotely, especially useful for large buildings or facilities.
Customization and Flexibility	Allows for customized system responses based on building configurations and specific emergency scenarios.
Data Logging and Event Tracking	Logs data and tracks events for analysis after incidents and routine system maintenance.

Device Activation and Deactivation

Relay modules are essential for controlling the activation or deactivation of various devices within the fire alarm system. Upon fire detection, the relay module activates key devices such as:
Strobe Lights & Sirens: Relay modules are responsible for turning on visual and audible alarms to alert building occupants.

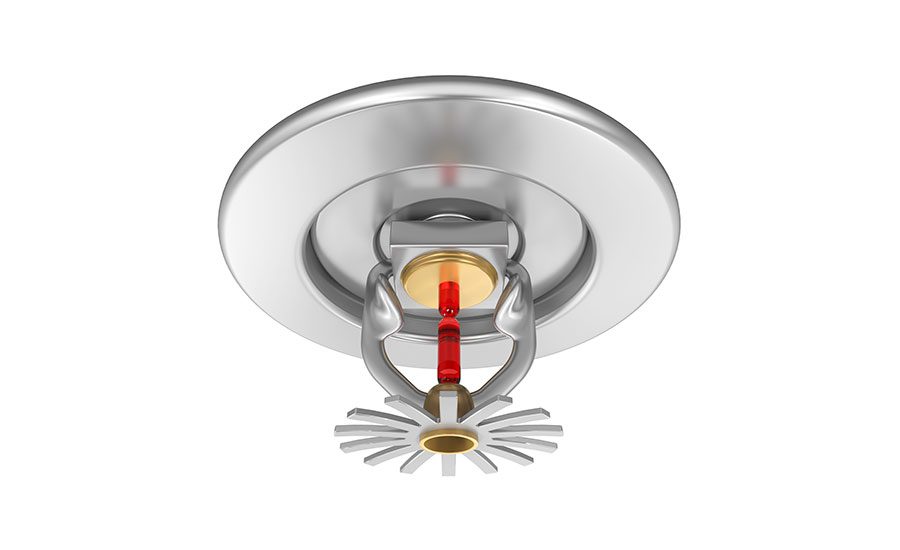

Sprinkler Systems: They trigger automatic activation of sprinklers to help control the fire.
Fire Doors: Relay modules can close fire doors to contain the fire and limit its spread.
HVAC Systems: These modules can deactivate HVAC systems to prevent the spread of smoke and heat.

Integration with Other Building Systems

Relay modules are critical in connecting the fire alarm systems with the rest of the building infrastructure for improved safety:
HVAC Control: They can manage airflow, ensuring HVAC systems do not contribute to the spread of smoke and fire.

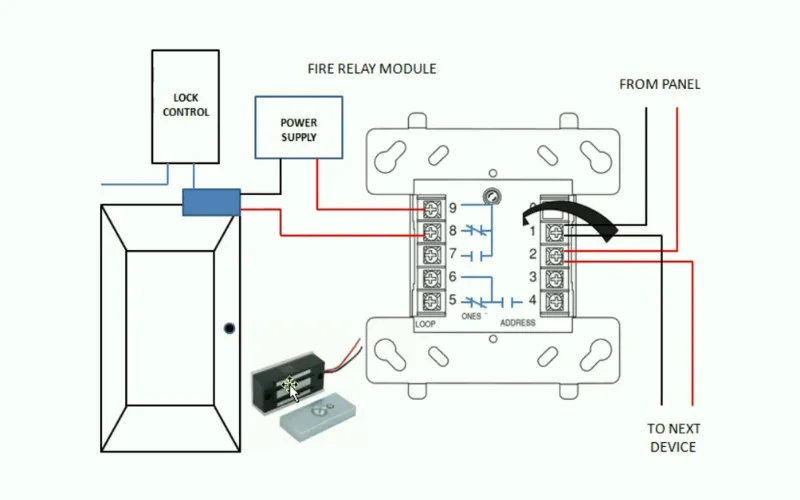

Security Systems: Relay modules can control locks and doors, enabling emergency exits or locking doors for safety.

Fault Isolation and System Maintenance

Relay modules assist in the segmentation of faulty devices within the system, which helps contain the failure within the device instead of the entire system failing at once:
If any unit in the fire alarm system malfunctions, the smoke detector relay module can disconnect the faulty unit from the system while still keeping the other units functional.

Sequential Control for Systematic Response

In larger fire alarm systems, relay modules allow for sequential control of devices, ensuring that actions are taken in a specific order for the most effective response:
Order of Activation: This ensures systems such as smoke exhaust fans are activated first, followed by alarms and sprinklers, ensuring safe evacuation and fire suppression.

Emergency Power Management

During a power failure, relay modules manage the switch between primary and backup power sources to ensure that the fire alarm system continues to function:
They ensure seamless transition to emergency power, preventing system failure during a crisis.

Remote Monitoring and Control

Relay modules also enable remote monitoring and control of the fire alarm system, which is particularly useful in large buildings or facilities:
Operators can monitor and control the status of various devices remotely, ensuring that the system remains operational even without being on-site.

Customization and Flexibility

Relay modules provide high flexibility in terms of customizing the fire alarm system’s response to specific building configurations and safety requirements:
Systems can be tailored to activate particular devices or sequences based on the type of fire or specific emergency scenario.

Data Logging and Event Tracking

Relay modules are capable of data logging and event tracking, which comes in handy for important analysis after an incident occurs as well as for routine maintenance of the system.
The operators can examine how the system responded to a fire alarm event, hence identifying problems and resolving them as required.

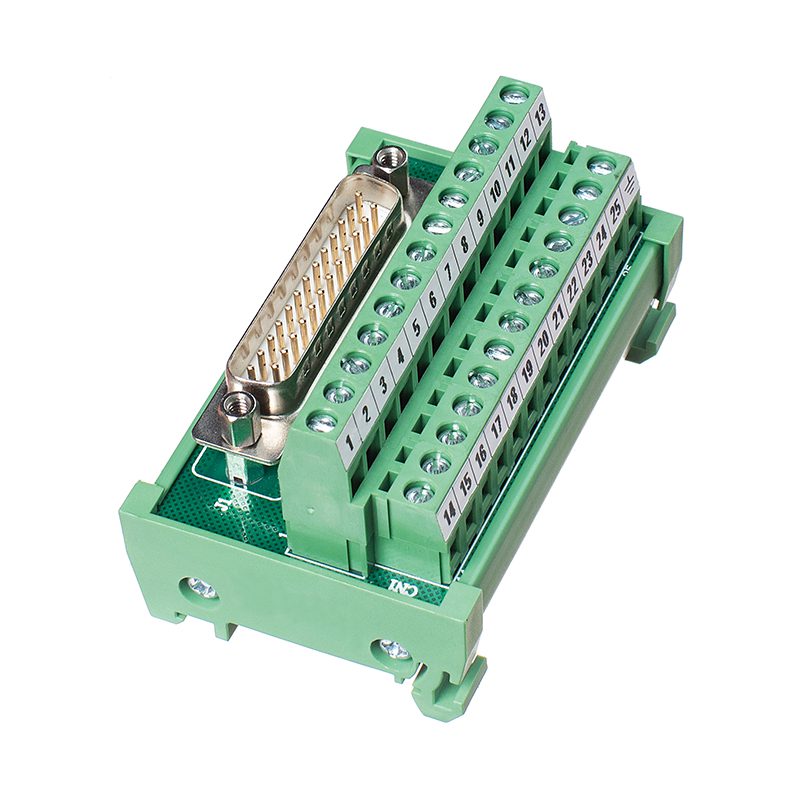

Shenler – China’s Leading Relay Module Manufacturer

Shenler has a staff that is more than willing to assist you in choosing the right interface relay module. With immense trust in the advancement of new technology, Shenler are able to offer sustainable solutions for all electric needs. You are guaranteed to get exceptional value from your investment with us because we only deliver the best products from the most reputable brands.

Conclusion

Relay modules are fundamental to modern fire alarm systems. They perform numerous functions that enhance building security. Relay modules guarantee the efficient functioning of fire alarm systems by allowing device activation, system integration, as well as fault isolation and remote control. Being customisable for particular needs and having the versatility to integrate with other building systems makes them a crucial component for all fire safety setups. Relay modules can enhance the system’s performance with the addition of data logging and event tracking. It can ensure fire alarms work as effectively as possible during emergencies.
