What to check before installing High Power Relay

High power relay is also called heavy duty relay, power switching relay, high voltage relay, high current relay, power relay switch, power relay, high amperage relay, etc. It is small in size and has large functions. It can carry high currents from a few amps to hundreds of amps, and can switch on and off under high current and high voltage conditions to achieve equipment protection and automatic control. It is widely used in various industries. For high power relays, people often care about their performance and quality, but ignore the necessary inspections before installation. A comprehensive inspection before installation often affects the stability, safety and service life of high power relays.
Based on actual operation and years of industry experience, this blog will comprehensively introduce what inspections need to be carried out on high-power relays before installation to improve the service life and stability of your relays.

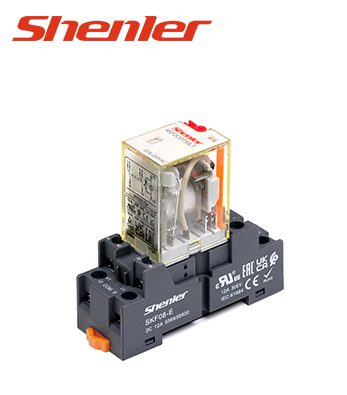

1. Appearance inspection of High Power relay

Appearance inspection is a simple and necessary step before installation. It can not only quickly identify whether the appearance of the relay has been damaged during transportation and storage, but also save us installation costs and prevent rework.
When conducting an appearance inspection, we should focus on the pins, shell, model, specifications and brand of the high-power relay to check whether their pins are bent, loose, oxidized or stained with dirt, whether the shell is cracked, damaged or obviously deformed, whether the specifications and models meet the design requirements, etc. These are all necessary procedures to ensure that the subsequent power switching relay can work stably and avoid rework.

2. High Power Relay Material Inspection

The material of a High Power Relay is very important for it to function stably and permanently. Therefore, before installing a power relay switch, we should check key components such as contact, shell, and coil materials. For example, when checking the contacts of a high amperage relay, we can use a magnifying glass to observe whether their surfaces are flat and shiny, so as to determine whether they are oxidized or contaminated, so as to ensure that the power relay can work stably after installation. The shell is the armor that enables the relay to work normally in harsh environments. Therefore, we can check the product manual or identify the shell material through the label to confirm whether it meets the technical requirements. If it is in a chemical or acidic environment, using an anti-corrosion shell such as epoxy resin is recommended.

3. Confirming the Model and Parameters of the Power Relay

Before installing the power switching relay, it is necessary to check that its model and parameters meet the design requirements, because different models of relays have different performance, working requirements, rated current and rated voltage, which may cause damage to the equipment later. Therefore, you must carefully check the model and parameters of the power switching relay before installation. This is a necessary step before installation. Specific verification items include the specific model of the relay, rated current, rated voltage, contact parameters, etc.

4.Electrical performance inspection

In order to ensure the electrical performance of the power relay switch and ensure that they can respond to specific signals in a timely manner and realize the opening and closing of the circuit, we must also focus on checking their electrical parameters.

4.1 Coil Resistance Check

Checking the coil resistance of the high-current relay can ensure the integrity of the coil and ensure that it does not have short-circuit or open-circuit problems during operation. We can use a multimeter to measure the coil resistance of the relay when the high-current relay is turned off. By comparing the actual resistance value we measure with the coil resistance value marked by the manufacturer, we can see if there is any deviation in the resistance value. It is recommended that the deviation range be controlled within approximately ±5%.

4.2 Insulation Performance Test

The insulation performance test can check whether the power relay switch can effectively prevent current leakage and withstand the working voltage and external electrical noise without failure or damage, thereby extending its service life. This test mainly uses a megohmmeter to measure the electrical insulation resistance value between the case, contacts and coil. In general, the resistance value should be greater than 100MΩ. If for special scenarios, the insulation resistance value will be higher.

4.3 Action Performance Check

The action performance check of a power switching relay is an important test to ensure that the relay can respond quickly and accurately when it receives certain external signals. We can perform a power-on simulation of the action process of the relay in the test environment to check whether the reaction time of the relay and the switching time of the contacts meet the time values specified by the manufacturer. The value of the reaction time will seriously affect the instability of the entire circuit and even the timeliness of the system. Therefore, the action performance check of the power switching relay is very important and we cannot ignore it.

4.4 Short-Circuit Performance Test

The short-circuit performance test of power switching relays is mainly used to check the performance and safety of relays under extreme conditions, to ensure that they can withstand the designed maximum current in actual applications, and to prevent equipment damage or safety accidents caused by short circuits. We can use short-circuit test equipment to apply a large current shock in a short period of time to observe whether the contacts are burned.

5. Checking the Technical Documentation of High Power Relays

The size specifications, electrical parameters and other important information of the power switching relay have corresponding technical documents for reference. Therefore, we must carefully check the technical documents before installing the relay. This is not only related to the correctness of our installation, but also an important basis for future maintenance. Therefore, before installation, we should not ignore the inspection of the relay’s product manual, technical specifications, warranty card, safety certification and other documents to ensure that all the information is complete and meets the safety standards.

FAQS

Q: What is the main difference between a high power relay and a reverse power relay?

A: A high power relay is a high voltage and high current relay that controls the on and off of the circuit through switch contacts and requires frequent opening and closing actions, while a reverse power relay is a relay used to protect equipment from reverse power flow damage. It mainly monitors the flow of current and plays a protective role, and does not require frequent opening and closing control.

Q: What is the difference between high power dc relay and high power ac relay?

A: Both high power dc relay and high power ac relay belong to high power relay, but high power dc relay is used in DC circuit with continuous current and no zero point, while high power ac relay is used in AC circuit with periodic current returning to zero, and its design is relatively simple.

Q: What is the difference between ECM Power Relay and High Power Relay?

A: ECM Power Relay is mainly used for electronic control modules in medium and low current systems. It is usually designed to be smaller and has a faster response speed than High Power Relay.

Q: What are the requirements for the use environment of High Power Relay?

A: The requirements of High Power Relay for the use environment are mainly reflected in factors such as temperature, humidity, impact vibration and electromagnetic interference. Therefore, when using them, try to keep them away from these unfavorable factors so that they can perform at their best.

Conclusion

Based on many years of practical experience and industrial production experience, a comprehensive inspection of Heavy Duty Relay before installation not only improves the reliability and stability of its operation, but also ensures the safety of the entire line and reduces maintenance and operating costs. A comprehensive inspection of its appearance, material, model and electrical performance before installation can avoid many problems, ensure the efficient performance of Heavy Duty Relay when working, and ensure the safety of the entire system.
