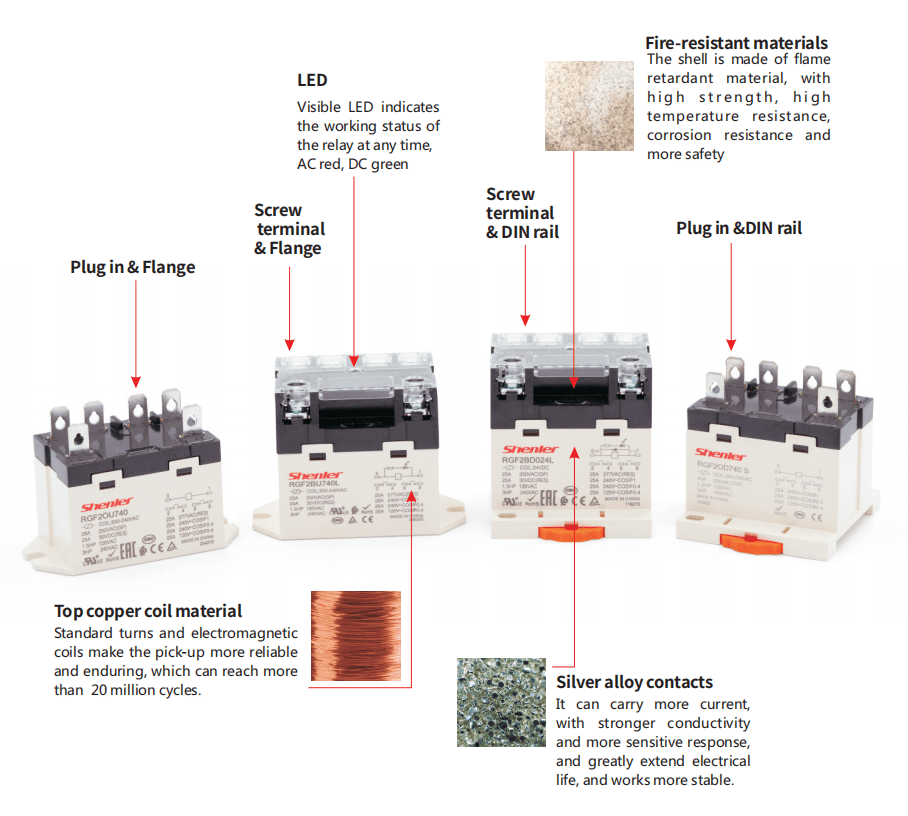

RGF Power Relay is a top mounted quick connect relay with a locating slot for DIN rail mounting. It is made of corrosion-resistant material and comes with a finger guard. The relays in RGF power relays are typically used to switch large currents or voltages with minimal power loss. The relay is RoHS compliant and has a safety module monitor.
Request A QuoteRGF power relay consists of a Relay and socket. The control voltage range can be extended using a matching socket. It can be used with the following types of sockets: STB08-E socket, STB11-E socket and STB14-E socket.
Contact | Configuration | 1A | 2A | 2A-S | |||||
Load | Resistance | 30A 277VAC/30VDC | 25A 277VAC/30VDC | 40A 250VAC/30VDC | |||||
Motor load | 1.5HP, 120VAC; 3HP, 240VAC | ||||||||
Max. switching capacity (resistive) | 8310VA, 900W | 6925VA, 750W | 10000VA, 1200W | ||||||
Initial contact resistance | ≤50mΩ | ||||||||
Auxiliary module | Configuration | 1CO | |||||||
Load(Resistive) | 250VAC,3A | ||||||||
Switching capacity(resistive) | 750VA | ||||||||
Contact resistance | ≤50mΩ | ||||||||
Material | Ag alloy | ||||||||

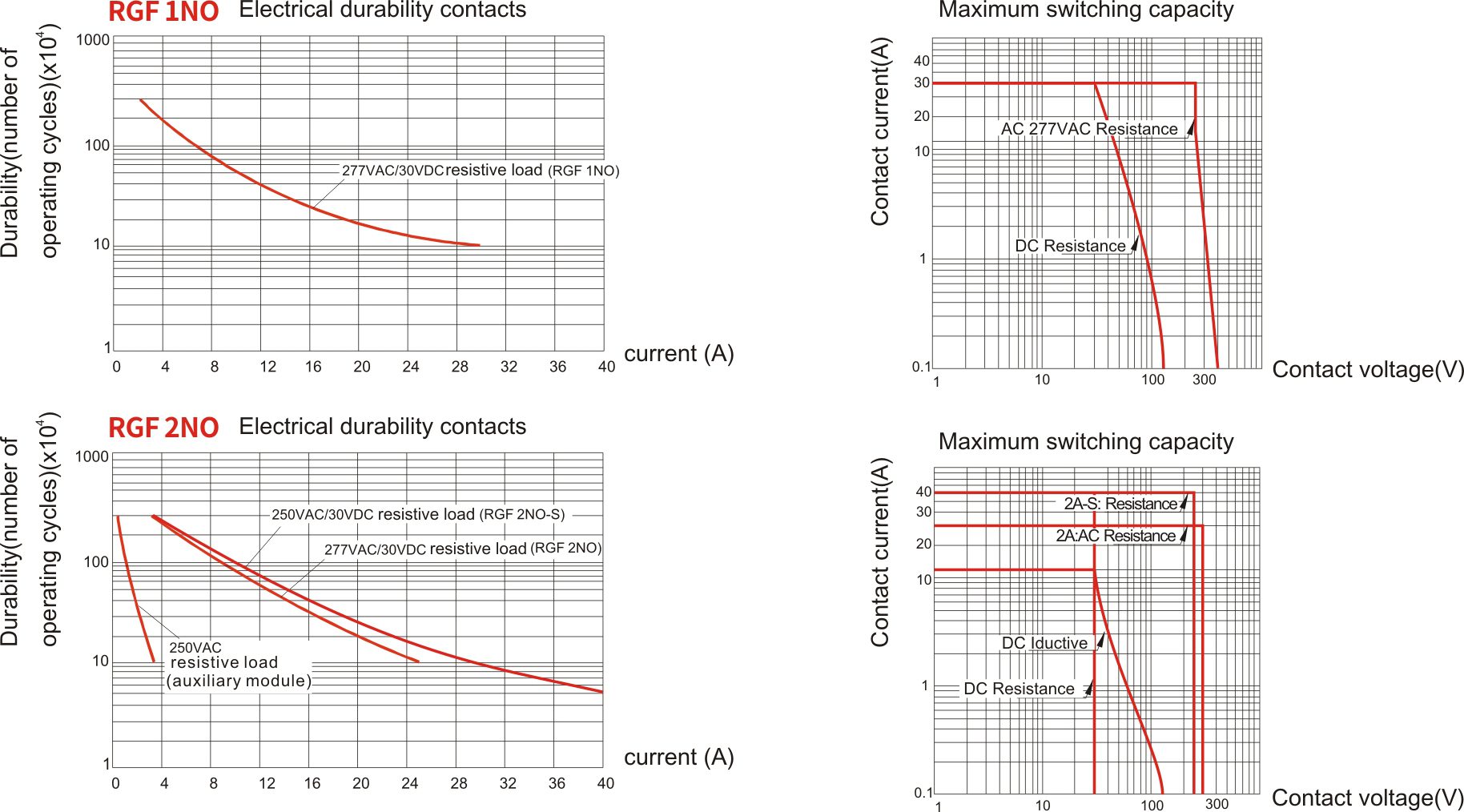

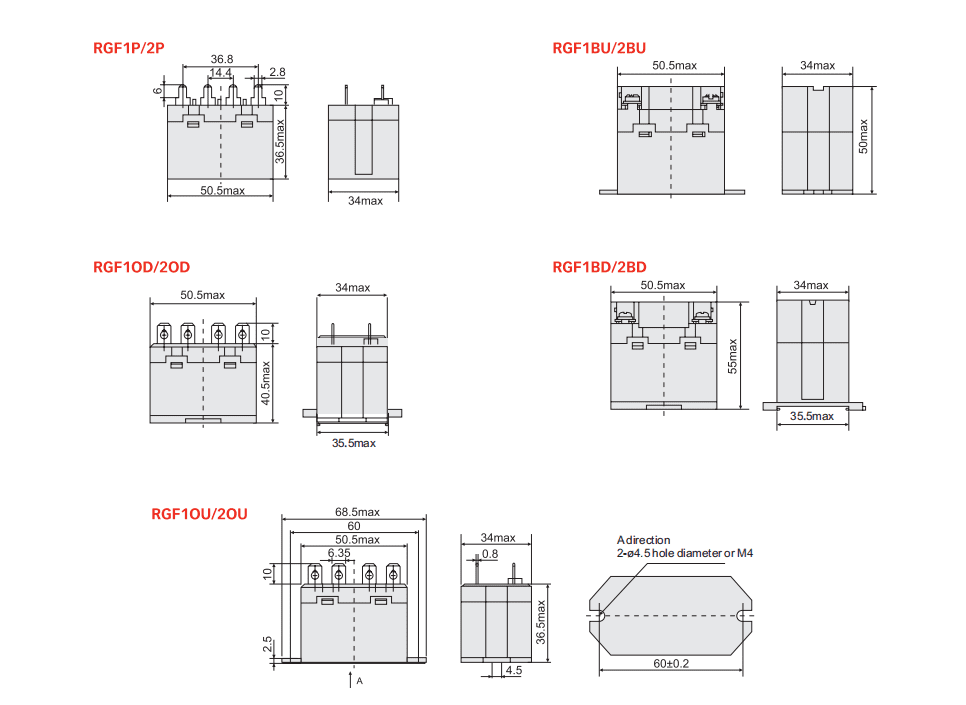

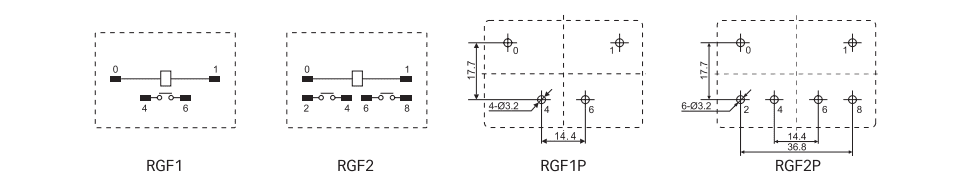

Electrical durability | ≥105Cycles (1800 Ops/h) | ≥5×10 4 Cycles (360 Ops/h) | |||||||
Mechanical durability | ≥5000 x 104 Cycles (1800 Ops/h) | ||||||||
Pick-up voltage (23℃) (Rated voltage) | DC:≤80% , AC:≤80% 50/60Hz | ||||||||
Drop-out voltage (23℃) (Rated voltage) | DC:≥15% , AC:≥15% 50/60Hz | ||||||||
Maximum voltage (23℃) (Rated voltage) | 110% | ||||||||
Insulation resistance | ≥1000MΩ (500VDC) | ||||||||
Coil operating power | DC (W) | approx. 1.9 | |||||||
AC (VA) | approx. 2.5 | ||||||||
Operate time&Release time (at nominal voltage) | ≤30ms | ||||||||
Initial breakdown voltage | Between open contacts | 2000VAC/1min (leakage current 1mA) | |||||||
Between poles | 2000VAC/1min (leakage current 1mA) | ||||||||
Between contacts and coil | 4000VAC/1min (leakage current 1mA) | ||||||||
Insulation characteristics IEC 60664 UL840 | Rated voltage | 277VAC | |||||||
Pollution level | 3 | ||||||||
Overvoltage level | III | ||||||||
Impulse withstand voltage (waveform: 1.2/50us) | 6000V | ||||||||
Protection level | IP50 | ||||||||
Storage temperature/ humidity | -55~+85℃/ ≤85%RH (18 months) | ||||||||
Working temperature/ humidity | -25~+55℃/ 5%~85%RH (No condensation) | ||||||||
Air pressure | 86~106KPa | ||||||||
Shock resistance | 10G (half-sine shock pulse: 11ms) | ||||||||
Vibration resistance | 10~55Hz double-amplitude:1.5mm | ||||||||
Mounting | plug in type; screw type; PCB type; DIN rail mounting type | ||||||||
Unit weight | plug in type about 90g; screw type around 120g; screw type +DIN rail mountingwith auxiliary module about 135g |
Nominal voltage V.DC | 6 | 12 | 24 | 48 | 110 | 220 | / | / |
Coil resistance Ω | 18.9 | 75 | 303 | 1220 | 6360 | 25474 | / | / |
Nominal voltage V.AC | 6 | 12 | 24 | 48 | 100-120 | 200-240 | 380 | 400 |
Coil resistance Ω | 14 | 55 | 275 | 1100 | 5200 | 21000 | 62650 | 62650 |
Remarks: Coil resistance: under coil voltage 110V are measured with tolerance of ±10%Ω, above 110V with tolerance of ±15%Ω. |
