RNC Interface Relay Module

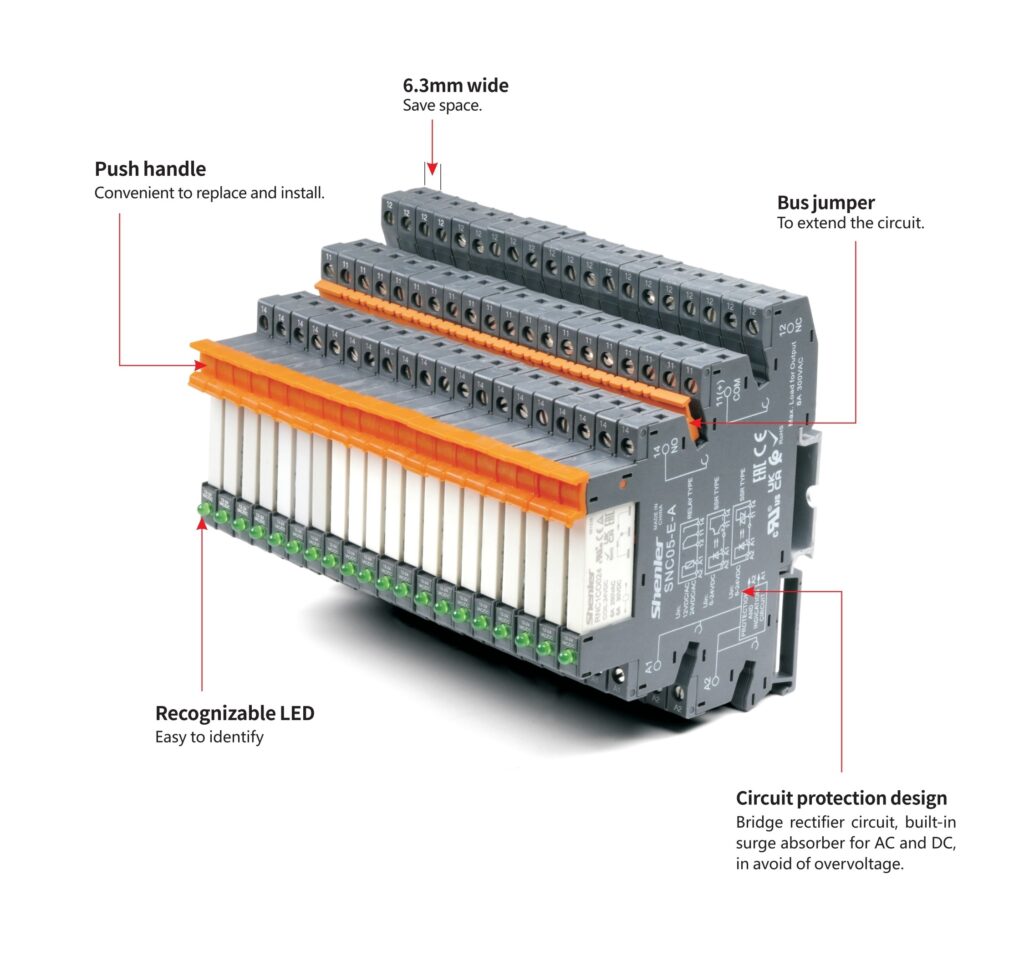

Features
Ultra-slim, high sensitivity and low consumption, the maximum load power 6A.
Reasonable structure, meets environmental protection requirements, the control voltage range can be extended with matching sockets.
Shenler industrial relays are widely used in the output signal and safety drive of PLC, CNC system, robot, intelligent manufacturing and other control systems. It is the best choice to realize remote control, production and processing, packaging, transportation, testing, storage and other equipment and automatic assembly lines.
Request A Quote Share Our Social
Series：RNC
Contact form ：1A: (NO) ；1C: (CO)
Terminal arrangement：O: Vertical pin；P: Horizontal pin
Coil voltage code：
| Code | 005 | 006 | 012 | 024 |
| Voltage (V DC) | 5 | 6 | 12 | 24 |
| Code | 048 | 060 | ||
| Voltage (V DC) | 48 | 60 |
Other options：
Blank: Conventional；A：Gold plated contact
Characteristics：
| Contact | Configuration | 1A,1C |
| Load Resistance | 6A/250VAC 30VDC | |
| Max.switching capacity (resistive) | 1500VA,180W | |
| Min.switching capacity | 170mW(17V/10mA) | |
| nitial contact resistance | ≤100mΩ (gold plated contact ≤30mΩ) | |
| Material | Ag alloy | |
| Electrical durability (normal tempe- rature)(frequency 1s on,5s off) | NO:6×10’Cycles(600 Ops/h) NC:3×10″Cycles(600 Ops/h) | |
| Mechanical durability | ≥2x10000000Cycles (18000 Ops/h) | |
| Pick-up voltage (23℃)(Rated voltage) | DC:≤75% | |
| Drop-out voltage (23℃)(Rated voltage) | DC:25% | |
| Maximum voltage (23℃)(Rated voltage) | 1.1 | |
| Insulation resistance | ≥1000MΩ(500VDC) | |
| Coil operating power | 3-24 VDC | approx.0.175W |
| 48-60 VDC | approx.0.21W | |
| Operate time(at nominal voltage) | ≤8ms | |
| Release time(at nominal voltage) | ≤4ms | |
| Initial breakdown voltage | Between open contacts | 1000VAC/1min (leakage current 1mA) |
| Between contacts and coil | 4000VAC/1min(leakage current 1mA) | |
| Insulation characteristics IEC 60664 UL840 | Rated voltage | 250VAC |
| Pollution level | 3 | |
| Overvoltage level | IⅢ | |
| lmpulse withstand voltage (waveform:1.2/50μs | 4000V | |
| Protection level | IP20 | |
| Storage temperature/humidity | -55~+85℃/≤85%RH (18 months) | |
| Working temperature/humidity | -40~+85℃/5%~85%RH (No condensation) | |
| Air pressure | 86~106KPa | |
| Shock resistance | 10G(half-sine shock pulse:11ms) | |
| Vibration resistance | 10~55Hz double-amplitude:1.0mm | |
| Mounting | PCB | |
| Unit weight | approx.6g | |
Coil Specifications (23℃)
| Nominal voltage V.DC （0.17W） | 5 | 6 | 12 | 24 |
| Coil resistance Ω | 147 | 212 | 847 | 3250 |
| Nominal voltage V.AC（0.21W） | 48 | 60 | ||
| Coil resistance Ω | 10971 | 17143 |
Coil resistance: under coil voltage 110V are measured with tolerance of ±10%Ω.

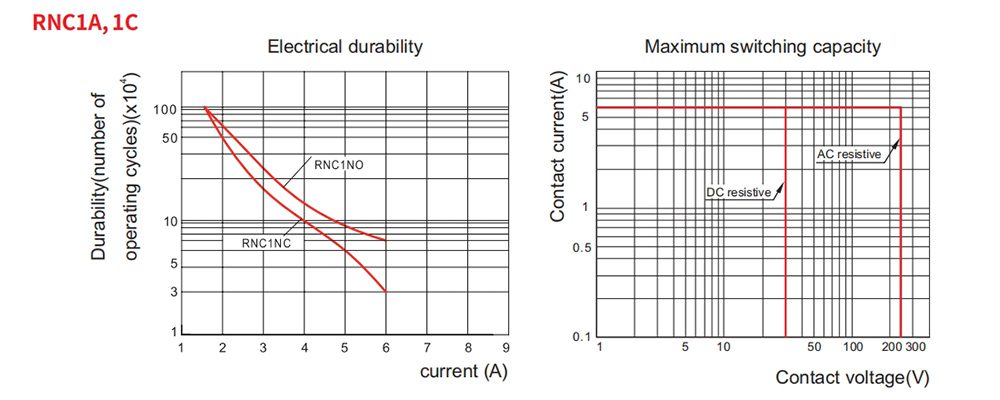

Contact Specification：

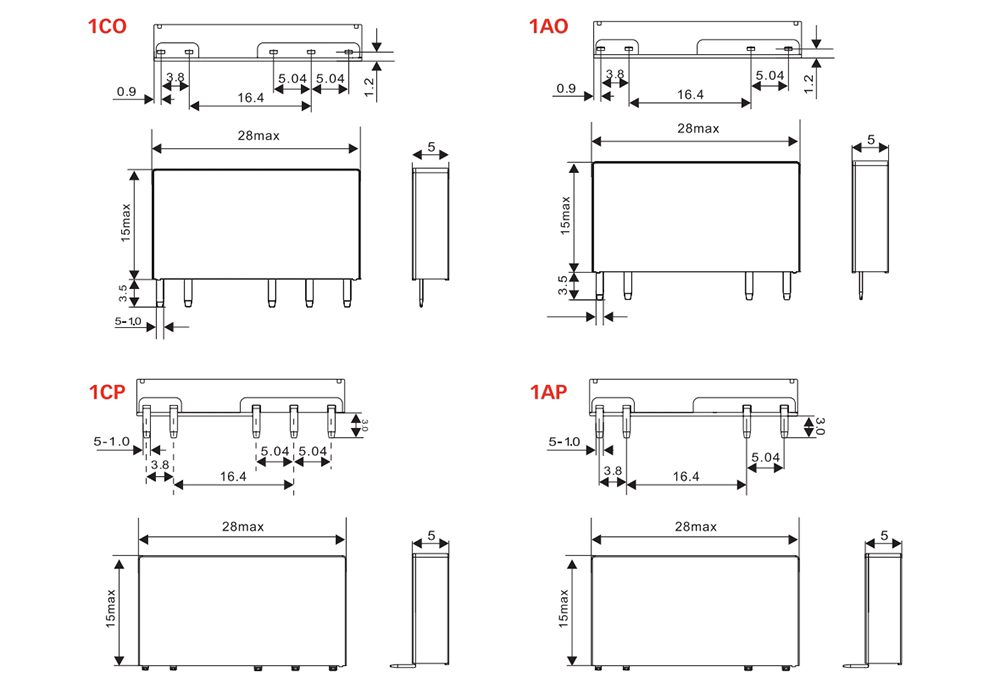

Dimensions (mm)：

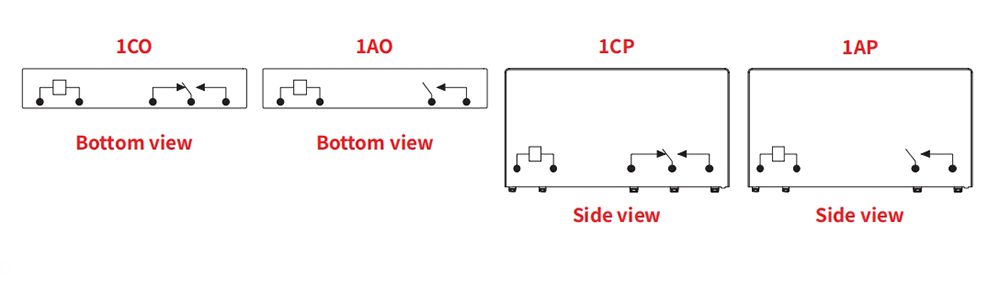

Wiring Diagrams：
