SKC08-E & SKC11-E & SKC14-E Socket
Features
SKC08-E, SKC11-E and SKC14-E sockets are designed for power relays and utility relays. The SKC08-E socket is 8-pin with a shroud, while the SKC11-E socket is an 11-pin with a shroud. The SKC14-E socket is a 14-pin shielded. The receptacles are all made of durable plastic with an elegant design and long connector cables.
Request A Quote Share Our Social
SKC08-E & SKC11-E & SKC14-E Socket Characteristics
| Type | Unit | SKC08-E | SKC11-E | SKC14-E | |
| Nominal load | Current | A | 12 | 10 | 10 |
| Voltage | V | 300 | |||
| Dielectric strength | Between coil and contact | V/min | 4000 | ||
| Between contacts | V/min | 2500 | |||
| Max. tightening torque | Nm | 1.0 | |||
| Wire size | AWG/mm² | 20-14/0.5-2.5 | |||
| Ambient temperature | °C | -40~+85 | |||
| Unit weight | g | 50 | 56 | 62 | |
Relay, Accessories Selection Table
| Socket | Plastic clip | Metal clip | ID tag | Module |
| SKC08-E |  SK36F |  SK36M |  SK4P |  AMD |
| SKC11-E | ||||
| SKC14-E |

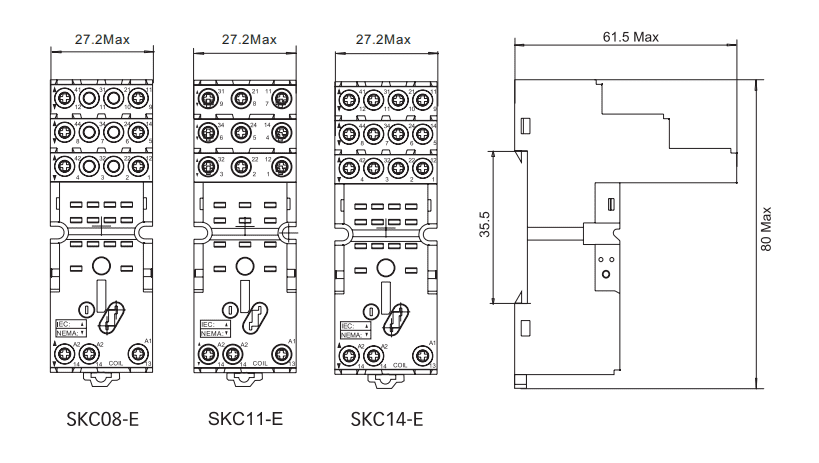

SKC08-E & SKC11-E & SKC14-E Socket Dimensions (mm)

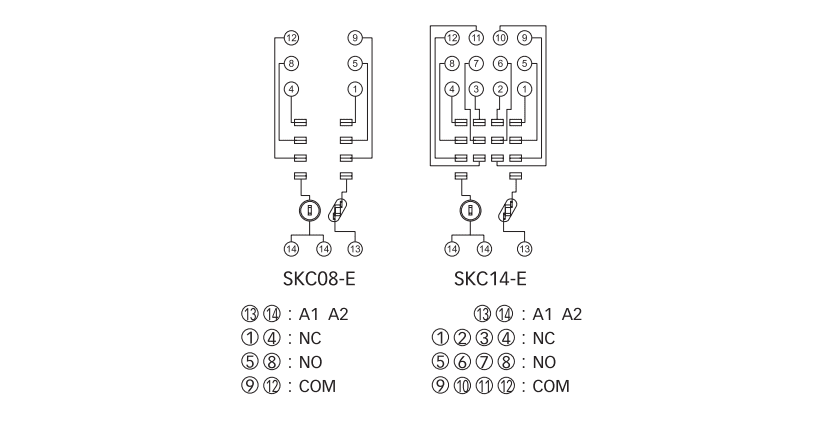

Connection Diagrams
