SKF14-A RKE Socket
SKF14-A RKE Socket

SKF14-A RKE Socket

Features

The SKF14-A socket is a tool for removing and installing power relays and utility relays. The socket has a diameter of 14 mm and fits SKF14-A relays. Made of high-quality materials, the socket is designed for long-term use and ease of operation.

certificate Request A Quote

Share Our Social

SKF14-A Socket Characteristics

Type Unit SKF14-A
Nominal load Current A 16
Voltage V 300
Dielectric strength V/min 2500
Max. tightening torque Nm 1.0
Wire size AWG/mm² 20-14/0.5-2.5
Ambient temperature °C -40~+85
Unit weight g 42.9

Relay, Accessories Selection Table

Socket Metal clip ID tag Module
SKF14-A SK36M

SK36M

SK2P

SK2P

AMD

AMD

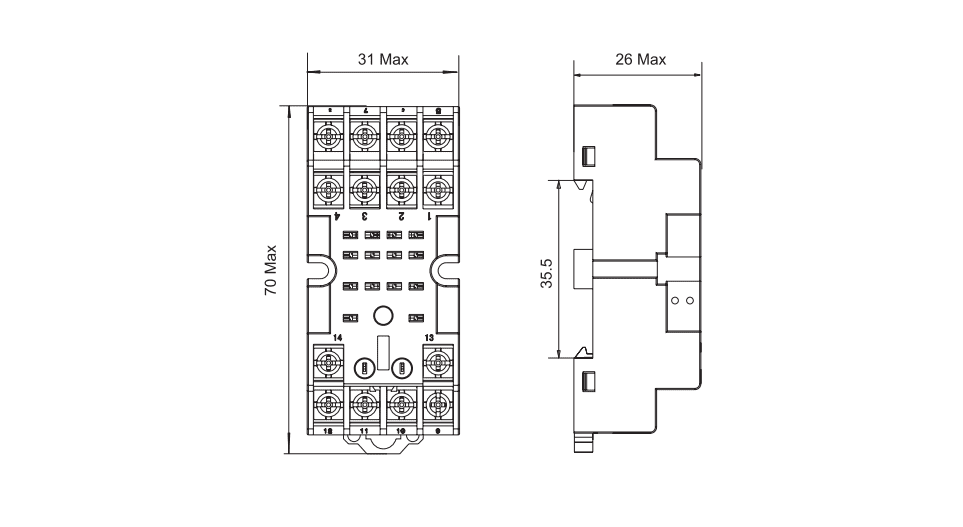

SKF14-A Socket Dimensions (mm)

SKF14-A SOCKET DIMENSION

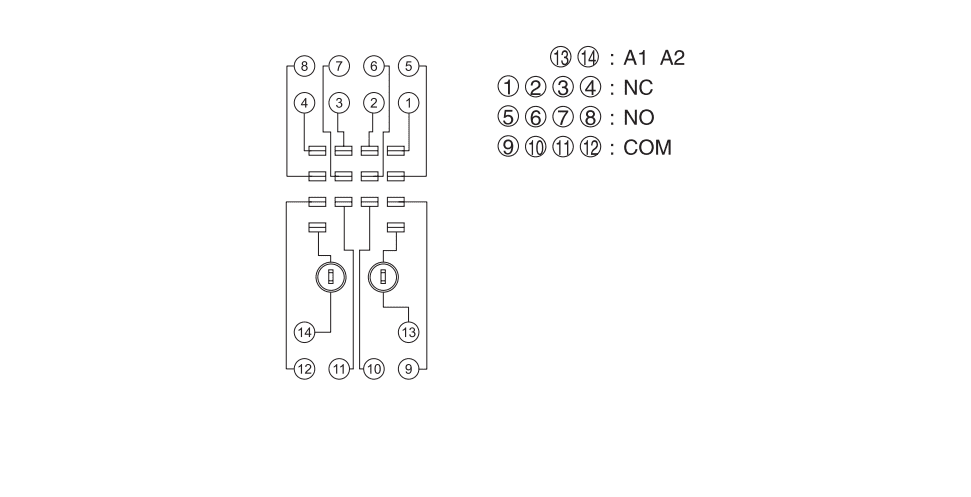

Connection Diagrams

SKF14-A SOCKET CONNECTION DIAGRAM
