HOME > Relay Socket > SNC05-E RNC Socket
SNC05-E RNC Socket
SNC05-E RNC Socket

SNC05-E RNC Socket

Features

The SNC05-E RNC socket is a socket specially designed for RSC series solid state slim relays. The sockets are made of high quality flame retardant plastic and are very easy to use; just plug in your relay and you’re good to go! The SNC05-E RNC socket is ideal for anyone looking to use the RSC series solid state slim relays in a simple, reliable way.

certificate Request A Quote

Share Our Social

SNC05-E RNC Socket Characteristics

Model No. Input Relay
SNC05-E-A 12-24V 12~24VDC
SNC05-E-B 48~60V 48~60VDC
SNC05-E-C 110V 60VDC
SNC05-E-D 230V 60VDC
Nominal load Current A 8
Voltage V 300
Dielectric strength Between coil and contact V/min 4000
Between contacts V/min 2500
Max. tightening torque Nm 0.5
Wire size AWG/mm² 20-16/0.5-1.5
Ambient temperature °C -40~+85
Unit weight g 24

Relay, Accessories Selection Table

Bus jumper

Legend

Partition plate

SN20A

SN20A

SN64P

SN64P

SN20S

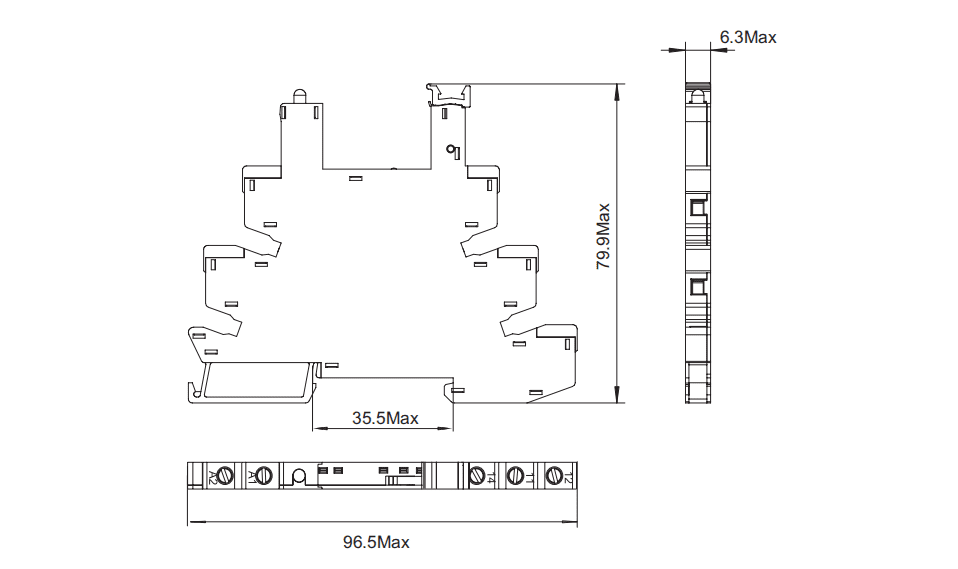

Dimensions (mm)

SNC05-E DIMENSION

Connection Diagrams

Connection Diagrams
