SNC05-S RNC Socket
Features
The SNC05-S RNC socket is a socket for PLC relays, made of high quality durable plastic. The socket has a 5-pin design, which is easy to install and use. In addition, the socket provides a quick and easy way to connect or disconnect a relay.
Request A Quote Share Our Social
SNC05-S RNC Socket Characteristics
| Model No. | Input | Relay |
| SNC05-E-AR | 6~24VDC | 6~24VDC |
| SNC05-E-A | 6~24V | 6~24VDC |
| SNC05-E-B | 48V | 24VDC |
| SNC05-E-C | 110V | 24VDC |
| SNC05-E-D | 230V | 48VDC |
| Nominal load | Current | A | 8 |
| Voltage | V | 300 | |
| Dielectric strength | Between coil and contact | V/min | 4000 |
| Between contacts | V/min | 2500 | |
| Max. tightening torque | Nm | 0.5 | |
| Wire size | AWG/mm² | 20-16/0.5-1.5 | |
| Ambient temperature | °C | -40~+85 | |
| Unit weight | g | 24 | |
Relay, Accessories Selection Table
| Bus jumper | Legend | Partition plate |
|

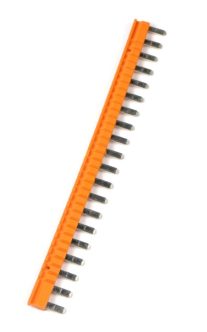

SN20A |

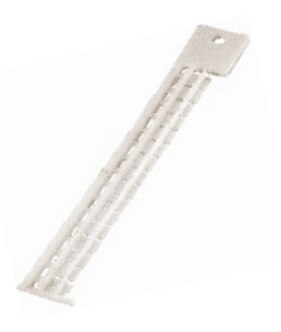

SN64P |

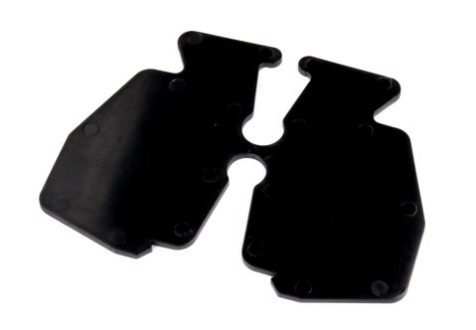

SN20S |

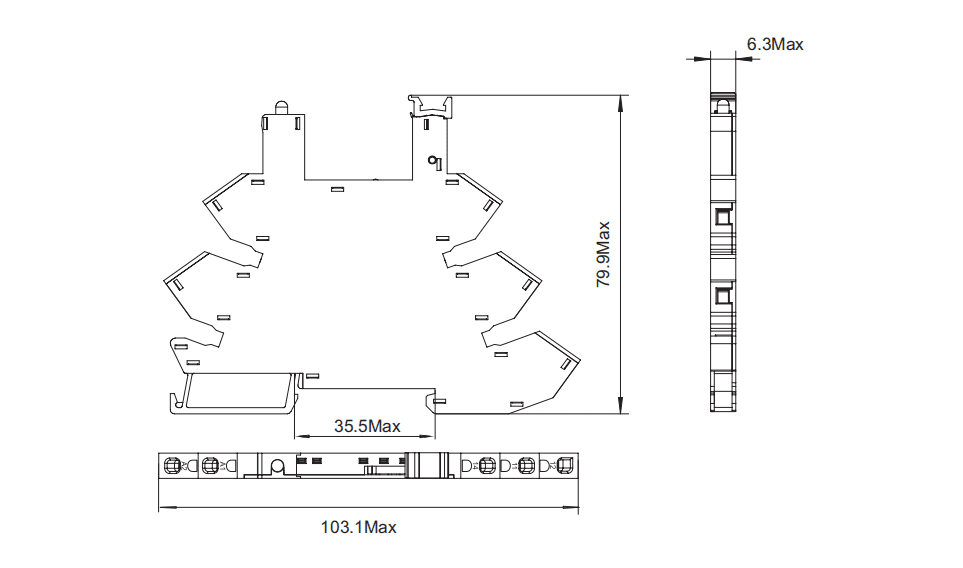

Dimensions (mm)

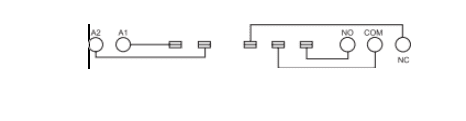

Connection Diagrams
