SRB05-E & SRB08-E R2G Socket
Features
SRB08-E R2G Socket is an 8P8C RJ45 socket with the ground contact removed. This socket allows you to connect the R2G relay to a computer or other device using a standard RJ45 patch cord.
The SRB05-E & SRB08-E sockets are designed for R2G relays. These sockets allow you to quickly and easily install or remove relays without worrying about soldering. The socket also provides a safe and reliable connection for the relay.
Request A Quote Share Our Social
SRB05-E & SRB08-E R2G Socket Socket Characteristics
| Type | SRB05-E | SRB08-E | ||
| Nominal load | Current | A | 12 | 10 |
| Voltage | V | 300 | ||
| Dielectric strength | Between coil and contact | V/min | 4000 | |
| Between contacts | V/min | 2500 | ||
| Max. tightening torque | Nm | 1.0 | ||
| Wire size | AWG/mm² | 20-14/0.5-2.5 | ||
| Ambient temperature | °C | -40~+85 | ||
| Unit weight | g | 33 | 37 | |
Relay, Accessories Selection Table
| Socket | ID tag | Module |
| SRB05-E |
SR2P |
AMD |
| SRB08-E |
Clip Selection Table
| Relay H (mm) | 15 | 20 | 25 |
| Clip Type |  SR15L |  SR20F |  SR25C |

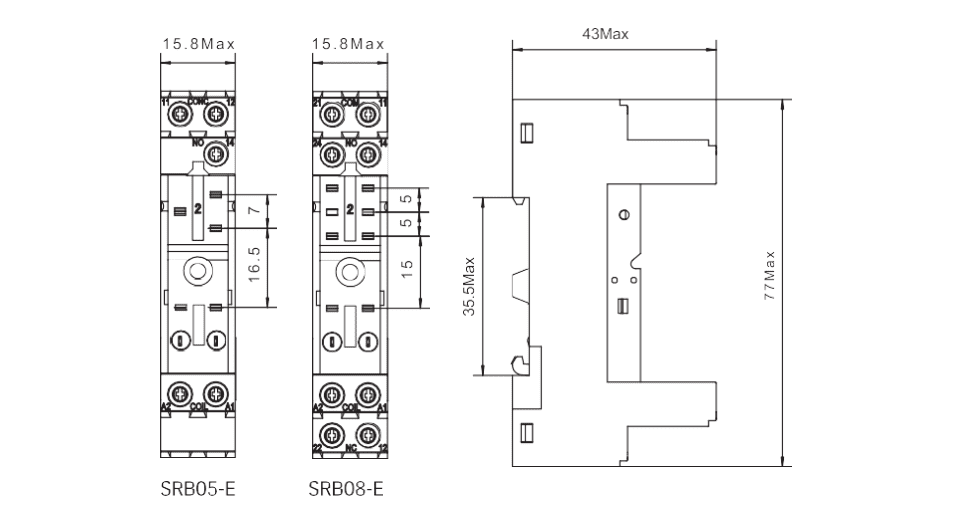

Dimensions (mm)

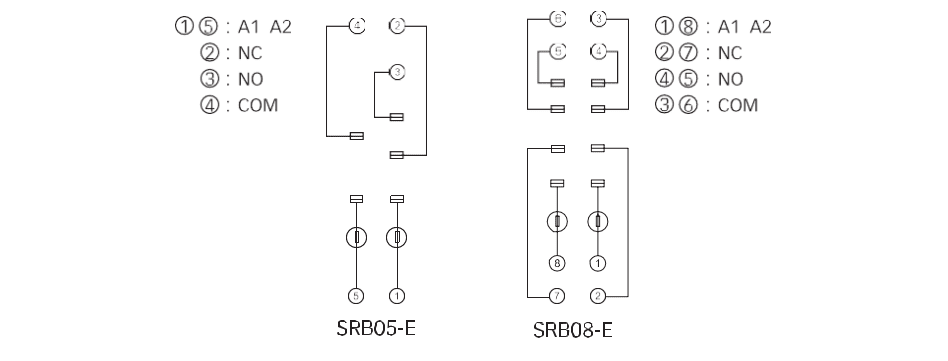

Connection Diagrams
