SRC05-ST & SRC08-ST R2G Socket
SRC05-ST & SRC08-ST R2G Socket
SRC05-ST & SRC08-ST R2G Socket
SRC05-ST & SRC08-ST R2G Socket

SRC05-ST & SRC08-ST R2G Socket

Features

The SRC05-ST receptacle is a single-pole, double-throw (SPDT) receptacle that can be used to connect or disconnect the load terminals from the power supply. The SRC08-ST is a three-pole, double-throw (3PDT) socket designed to provide a reliable, low-resistance connection to up to three #8-32 or M3.5 screws.



SRC05-ST and SRC08-ST R2G sockets are used to install RG2 power relays. The socket has a sturdy threaded design and is made of durable plastic. They are ideal for electrical panels, industrial equipment and other applications that require reliable and durable 3PDT sockets.

certificate Request A Quote

Share Our Social

SRC05-ST & SRC08-ST R2G Socket Characteristics

Type SRC05-ST SRC08-ST
Nominal load Current A 16 10
Voltage V 300
Dielectric strength Between coil and contact V/min 4000
Between contacts V/min 2500
Max. tightening torque Nm
Wire size AWG/mm² 20-14/0.5-2.5
Ambient temperature °C -40~+85
Unit weight g 37 42

Relay, Accessories Selection Table

Socket

ID tag

Bus Jumper

Module

SRC05-ST

SR2P

SR2P

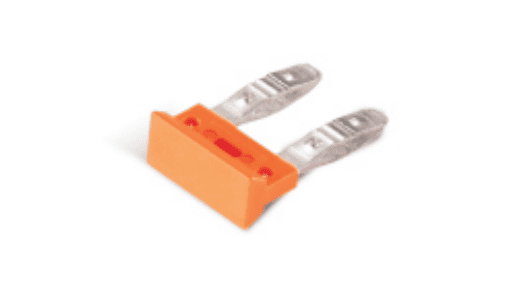

ST01CC

ST01CC

AMD

AMD

SRC08-ST

Clip Selection Table

Relay H (mm)

15

20

25

Clip Type

SR15L

SR15L

SR20F

SR20F

SR25C

SR25C

Dimensions (mm)

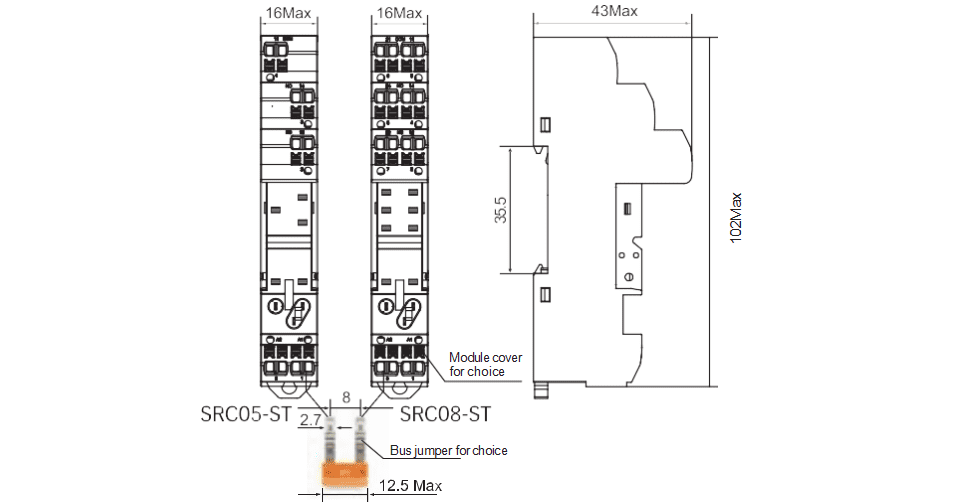

SRC05-ST SRC08-ST DIMENSIONS

Connection Diagrams

SRC05-ST SRC08-ST CONNECTION DIAGRAMS
