SRT05-A & SRT08-A Socket
Features
SRT05-A & SRT08-A sockets are designed for RFT slim relays. It’s easy to install and use. The sockets are of high quality and long life. This product is RoHS compliant.
Request A Quote Share Our Social
SRT05-A & SRT08-A Socket Characteristics
| Type | Unit | SRT05-A | SRT08-A | |
| Nominal load | Current | A | 16 | 10 |
| Voltage | V | 300 | ||
| Dielectric strength | Between coil and contact | V/min | 4000 | |
| Between contacts | V/min | 2500 | ||
| Max. tightening torque | Nm | 1.0 | ||
| Wire size | AWG/mm² | 20-14/0.5-2.5 | ||
| Ambient temperature | °C | -40~+85 | ||
| Unit weight | g | 22 | 27 | |
Relay, Accessories Selection Table

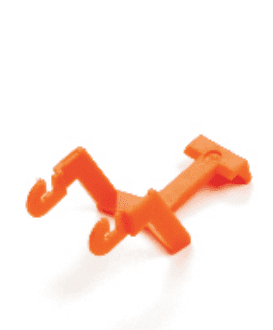

| Plastic clip | Bus jumper |
 SR20 |  SR08C |
Dimensions (mm)

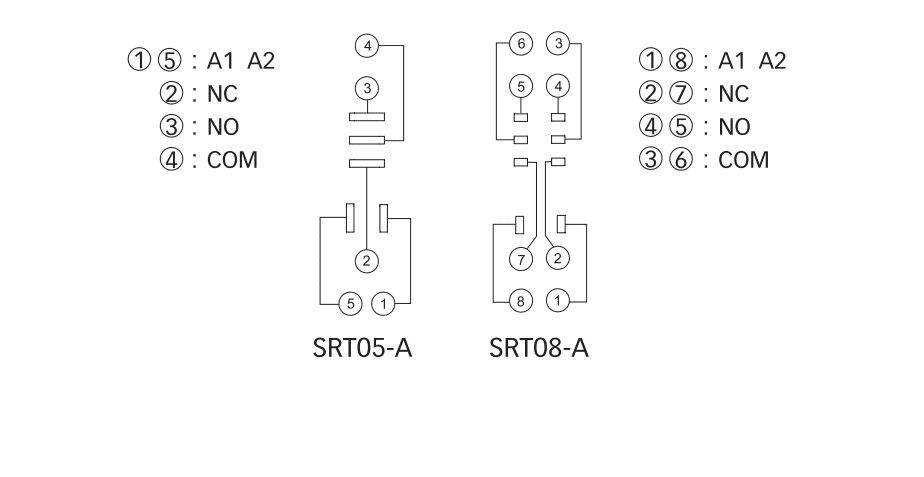

Connection Diagrams
