SRU05-E & SRU08-E RFT Socket
SRU05-E & SRU08-E RFT Socket
SRU05-E & SRU08-E RFT Socket
SRU05-E & SRU08-E RFT Socket

SRU05-E & SRU08-E RFT Socket

Features

SRU05-E & SRU08-E RFT sockets are RFT sockets for RFT interface relays. The SRU05-E is a 2-position screw terminal socket that accepts 18 to 26 AWG wire. The SRU08-E is an 8-position screw terminal socket that accepts 18 to 26 AWG wire. These sockets allow users to connect and disconnect devices without removing the relay’s housing. The socket is made of durable plastic and is easy to use.

certificate Request A Quote

Share Our Social

SRU05-E & SRU08-E Socket For RFT Slim Relay Characteristics

Type Unit SRU05-E SRU08-E
Nominal load Current A 16 10
Voltage V 300
Dielectric strength Between coil and contact V/min 4000
Between contacts V/min 2500
Max. tightening torque Nm 1.0
Wire size AWG/mm² 20-14/0.5-2.5
Ambient temperature °C -40~+85
Unit weight g 35 43

Relay, Accessories Selection Table

Socket Plastic clip ID tag Module Bus jumper
SRU05-E

SR20T

SR2P

SR2P

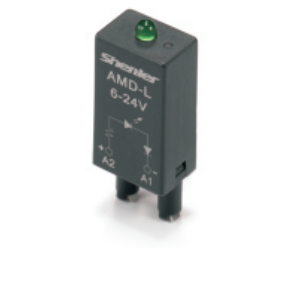

AMD

AMD

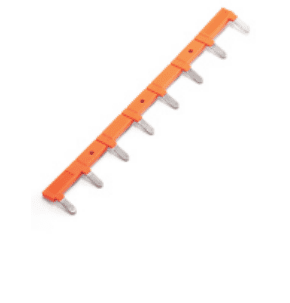

SR08B

SRU08-E

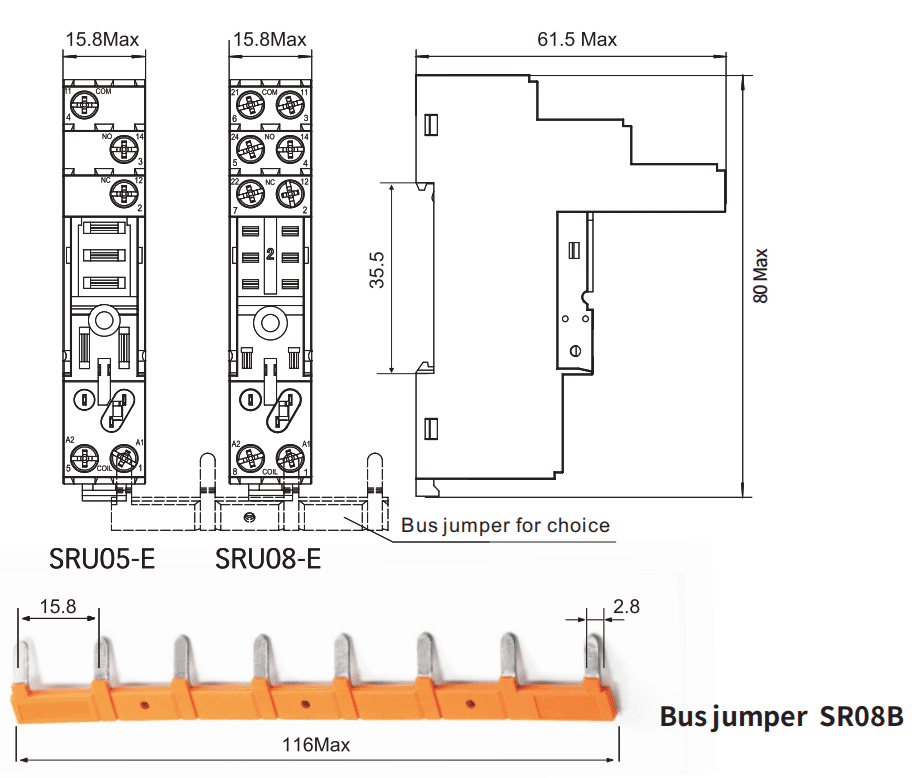

SRU05-E & SRU08-E Socket For RFT Slim Relay Dimensions (mm)

SRU05-E Dimensions

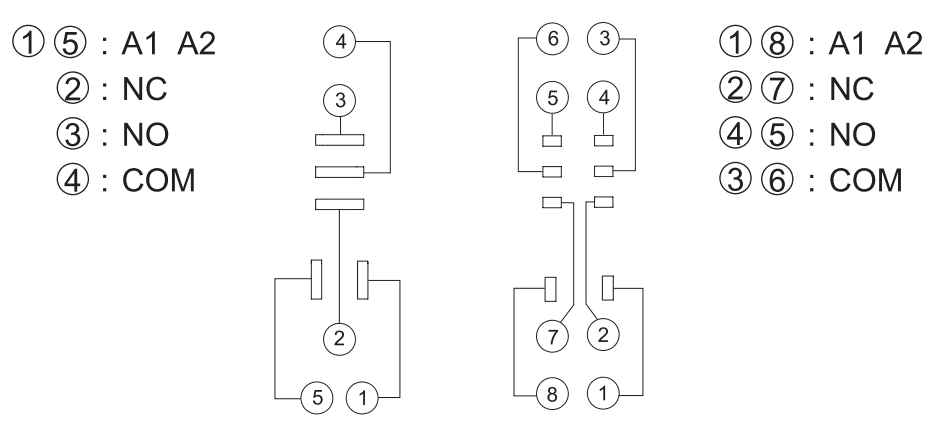

Connection Diagrams

SRU05-E Connection Diagrams
