SUB08-A & SUB11-A Socket
SUB08-A & SUB11-A Socket
SUB08-A & SUB11-A Socket
SUB08-A & SUB11-A Socket

SUB08-A & SUB11-A Socket

Features

SUB08-A and SUB11-A sockets are used for RUB general purpose relays. The SUB08-A socket is a 14-pin DIL socket with a locking mechanism, and the SUB11-A socket is an 18-pin DIL socket. The socket allows quick and easy installation of the relay and provides a stable and secure connection.

certificate Request A Quote

Share Our Social

Type Unit SUB08-A SUB11-A
Nominal load Current A 12 10
Voltage V 300
Dielectric strength V/min 2500
Max. tightening torque Nm 1.0
Wire size AWG/mm² 20-14/0.5-2.5
Ambient temperature °C -40~+85
Unit weight g 37 50

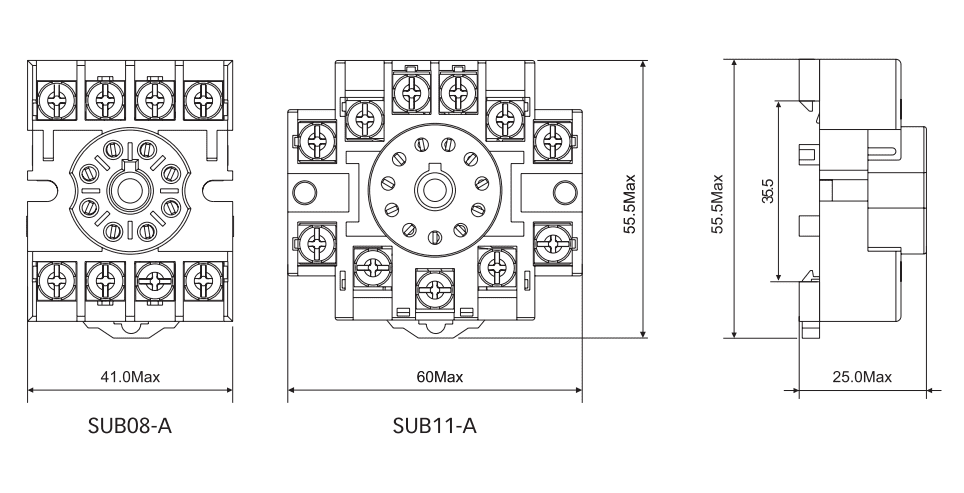

SUB08-A & SUB11-A Socket Dimensions (mm)

SUB08-A & SUB11-A RUB Socket Dimensions (mm)

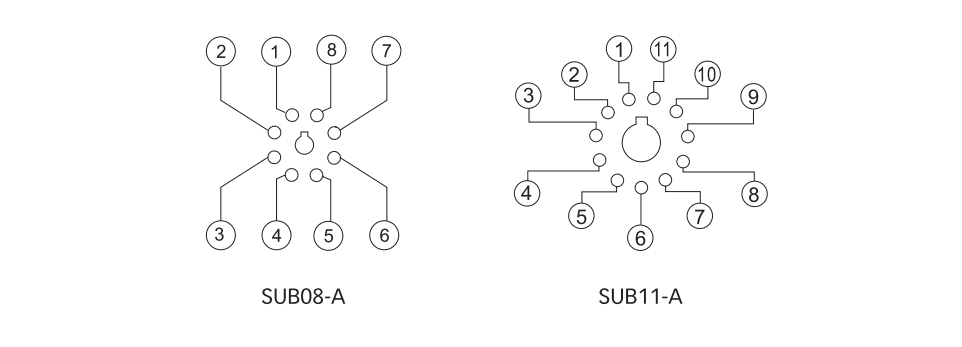

Connection Diagrams

SUB08-A & SUB11-A RUB Socket Connection Diagrams
