SUB08-E & SUB11-E Socket
Features
SUB08-E & SUB11-E sockets are universal sockets for RUB relays. It is made of durable plastic with screw terminals. This socket is easy to use and designed for reliability and durability. It is perfect for any industrial or commercial application.
Request A Quote Share Our Social
SUB08-E & SUB11-E Socket Characteristics
| Type | Unit | SUB08-E | SUB11-E | |
| Nominal load | Current | A | 12 | |
| Voltage | V | 300 | ||
| Dielectric strength | V/min | 2500 | ||
| Max. tightening torque | Nm | 1.0 | ||
| Wire size | AWG/mm² | 20-14/0.5-2.5 | ||
| Ambient temperature | °C | -40~+85 | ||
| Unit weight | g | 50 | 55 | |
Relay, Accessories Selection Table
| Socket | Metal clip | ID tag | Module |

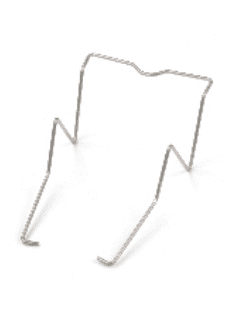

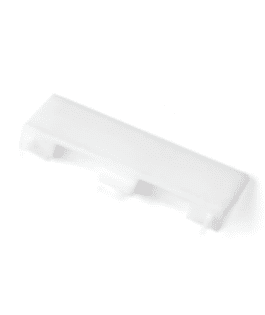

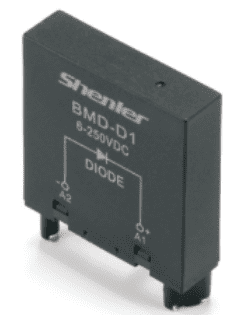

| SUB08-E |  SU60M |  SU3P |  BMD |
| SUB11-E |

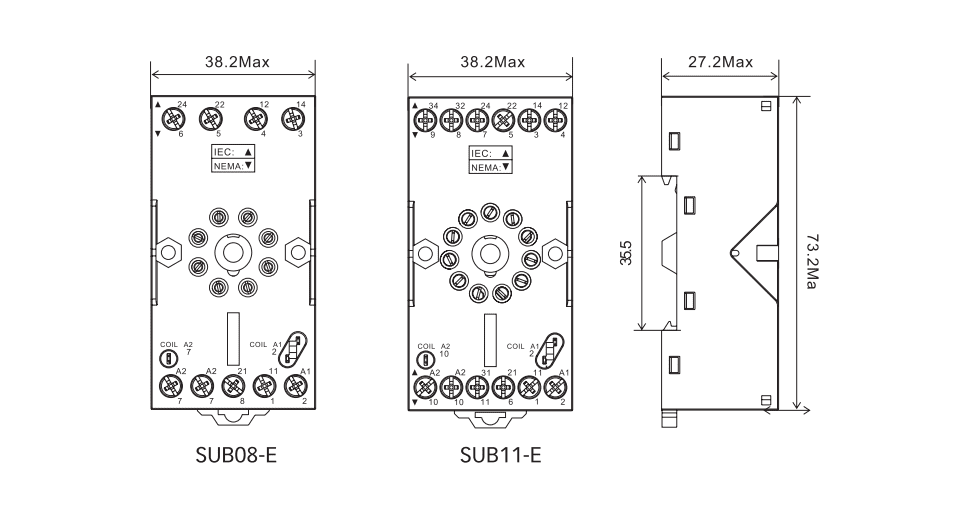

SUB08-E & SUB11-E Socket Dimensions (mm)

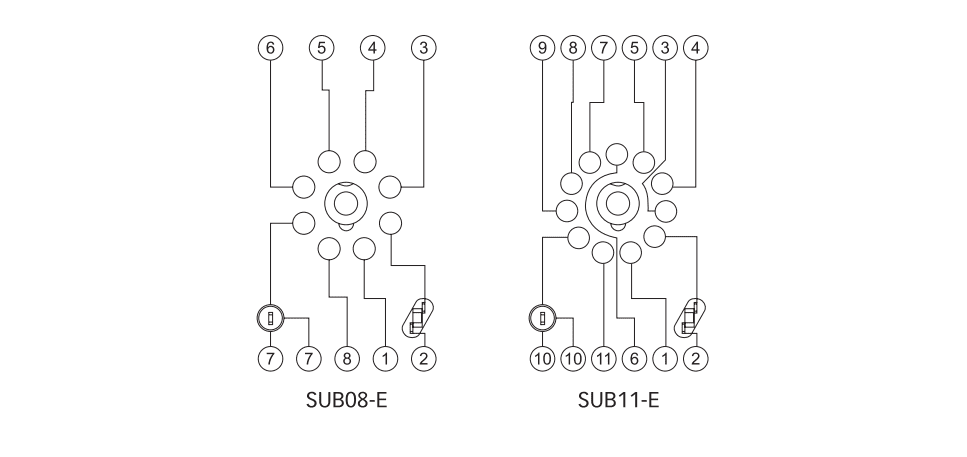

Connection Diagrams
Contact Us
Applicable socket
