SYF08A-E & SYF11A-E & SYF14A-E RKM & RKE Socket
SYF08A-E & SYF11A-E & SYF14A-E RKM & RKE Socket
SYF08A-E & SYF11A-E & SYF14A-E RKM & RKE Socket
SYF08A-E & SYF11A-E & SYF14A-E RKM & RKE Socket

SYF08A-E & SYF11A-E & SYF14A-E RKM & RKE Socket

Features

SYF08A-E & SYF11A-E & SYF14A-E RKM sockets are sockets specially designed for miniature general purpose relays. It has three terminals: two for the relay coil and one for the contacts. They are made of high-quality materials, durable and reliable. Plus, these sockets are easy to use and install, making them perfect for any application.

certificate Request A Quote

Share Our Social

SYF08A-E & SYF11A-E & SYF14A-E RKM & RKE Socket Characteristics

Type Unit SYF08A-E SYF11A-E SYF14A-E
Nominal load Current A 10 7 7
Voltage V 300
Dielectric strength V/min 2000
Max. tightening torque Nm 1.0
Wire size AWG/mm² 20-16/0.5-1.5
Ambient temperature °C -40~+85
Unit weight g 36 56 57

Relay, Accessories Selection Table

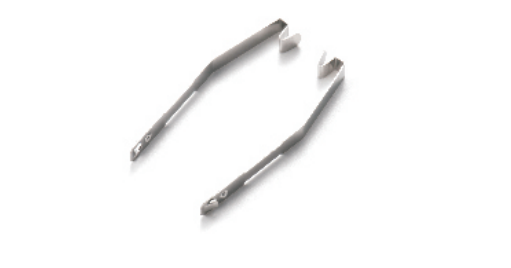

Socket Metal clip
SYF08A-E SY36S

SY36S

SYF11A-E
SYF14A-E

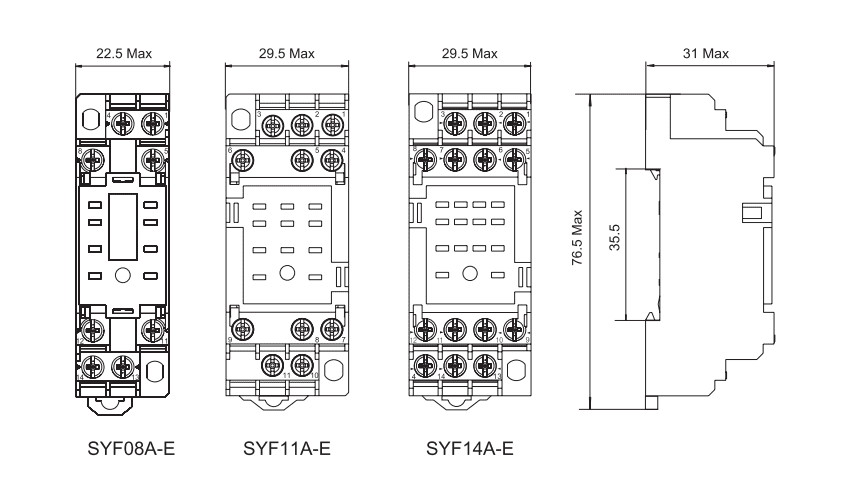

Dimensions (mm)

SYF08A-E & SYF11A-E & SYF14A-E RKM Socket Dimension

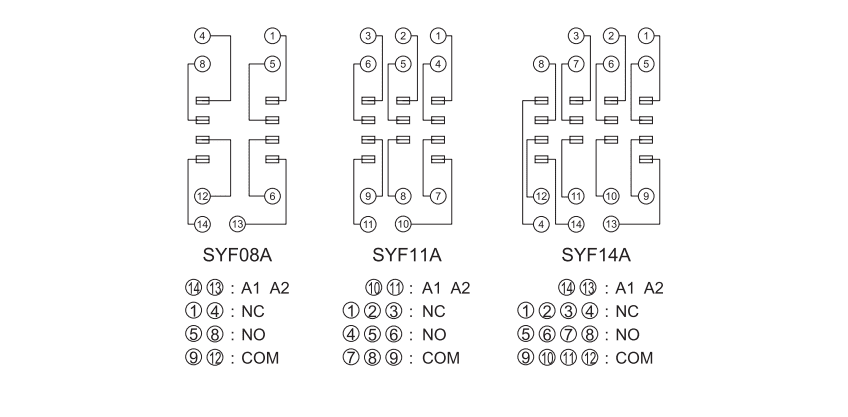

Connection Diagrams

SYF08A & SYF11A & SYF14A RKM Socket Connection Diagrams
